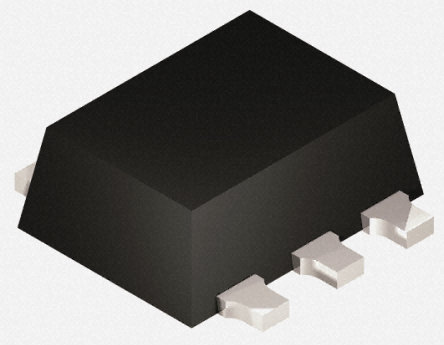

Image is for your reference only,please check specifications for details

USBUF02W6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2281040
Category:
RFI Shielding
Package:
SOT-323-6
Datasheet:
Datasheet 3D Model
Description:
RC (Pi) EMI Filter 2nd Order Low Pass 2Channel R = 22Ω, C = 47pF 6-TSSOP, SC-88, SOT-363
Stock Locations:
Availability:
1,683 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The USBUF02W6 is an EMI Filter and Line Termination for USB upstream ports. The low-pass EMI analogue filter specification requires upstream ports to be terminated with pull-up resistors from the D+ and D- lines to Vbus. On the implementation of USB systems, the radiated and conducted EMI should be kept within the required levels as stated by the FCC regulations. The filter provides the recommended line termination while implementing a low pass filter to limit EMI levels and providing ESD protection which exceeds IEC 61000-4-2 level 4 standards.
Integrated Rt series termination and Ct bypassing capacitors
EMI/RFI noise suppression
Required line termination for USB upstream ports
High flexibility in the design of high density boards
ESD sensitive device, take proper precaution while handling the device.

Show

USBUF02W6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-323-6
Capacitance	47 pF
Number of Channels	2 Channel
Number of Positions	6 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
