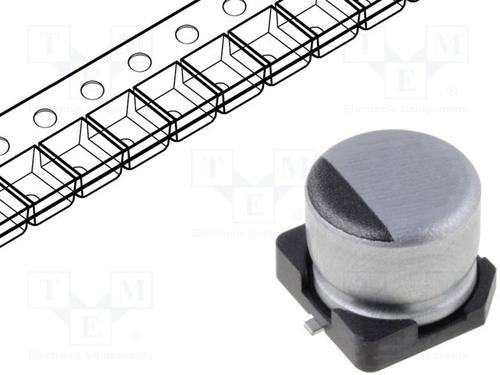

Image is for your reference only,please check specifications for details

UWT1E4R7MCL1GB - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC11974237
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
4.7uF ±20% 25V Φ4mm 5.4mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 19/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Thanks to Nichicon, you"ll never miss low-end frequencies with their electrolytic UWT1E4R7MCL1GB aluminum capacitor. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 5.4 mm tall with a diameter of 4 mm. It has a tolerance of 20%. Its capacitance value is 4.7uF. Its leakage current is 3@2Min μA.

Show

UWT1E4R7MCL1GB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD
Voltage Rating (DC)	25.0 V
Operating Voltage	25 VDC
Capacitance	4.7 µF
Capacitance Tolerance	±20 %
Part Family	UWT
Ripple Current	13 mA
Ripple Current (Low Frequency)	13mA @120Hz
Ripple Current (High Frequency)	19.5mA @10kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	25 V
	Show
Size-Length	5.40 mm
Size-Height	5.4 mm
Size-Diameter	4.00 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	2000
Life (Hours)	1000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
