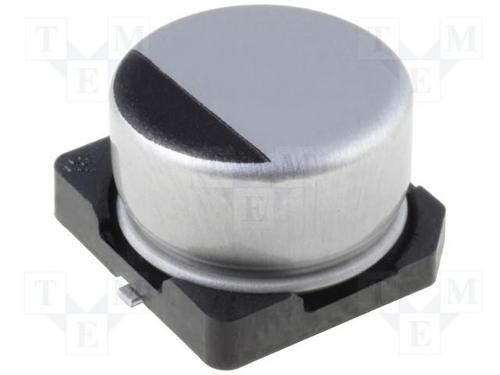

Image is for your reference only,please check specifications for details
- UWX1E330MCL1GB - Nichicon
-
Manufacturer:Nichicon
-
ManyChip's Part#:MC10567666
-
Category:Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:33uF ±20% 25V Φ6.3mm 5.4mm
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- WX Series 33 uF 25 V 85°C Ř6.3 x 5.4mm SMT Chip Aluminum Electrolytic Cap
UWX1E330MCL1GB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Voltage Rating (DC) | 25 V |
| Operating Voltage | 25 VDC |
| Capacitance | 33 µF |
| Capacitance Tolerance | ±20 % |
| Part Family | UWX |
| Ripple Current | 52 mA |
| Ripple Current (Low Frequency) | 52mA @120Hz |
| Ripple Current (High Frequency) | 78mA @10kHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 25 V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 6.6 mm |
| Size-Height | 5.4 mm |
| Size-Diameter | 6.30 mm |
| Dielectric Material | Aluminum Electrolytic |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 1000 |
| Life (Hours) | 2000h @85℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
