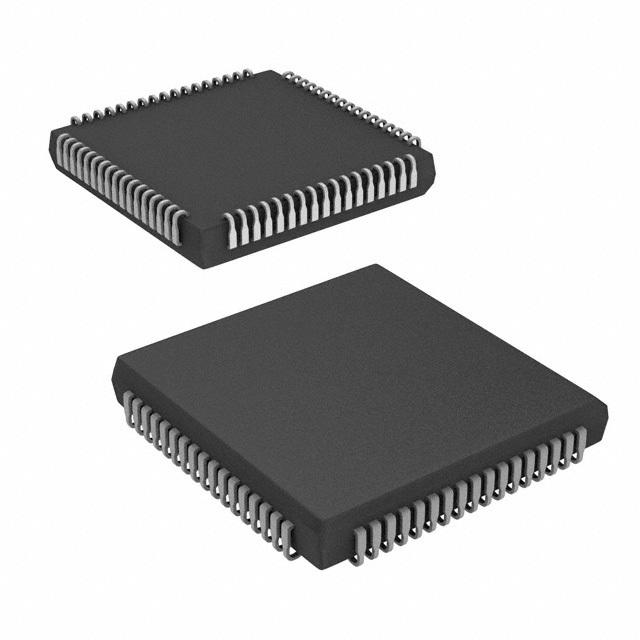

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The VECANA01 consists of three 12-bit analog-to-digital converters preceded by five simultaneously operating sample-hold amplifiers, and multiplexers for 10 differential inputs. The ADCs have simultaneous serial outputs for high speed data transfer and data processing.
The VECANA01 also offers a programmable gain amplifier with programmable gains of 1.0V/V, 1.25V/V, 2.5V/V, and 5.0V/V. Channel selection and gain selection are selectable through the serial input control word. The high through put rate is maintained by simultaneously clocking in the 13-bit input control word for the next conversion while the present conversions are clocked out.
The part also contains an 8-bit digital-to-analog converter whose digital input is supplied as part of the input control word.
10 FULLY DIFFERENTIAL INPUTS
5 SIMULTANEOUS SAMPLED CHANNELS PLUS 2 SYNCHRONIZED SAMPLING CHANNELS
3 SYNCHRONIZED 12-BIT ADCs
12.8us THROUGHPUT RATE
DIGITALLY SELECTABLE INPUT RANGES
±5V POWER SUPPLIES
SERIAL DIGITAL INPUT/OUTPUTS
7 SIGN AND 3 DIGITALLY PROGRAMMABLE WINDOW COMPARATOR
APPLICATIONS
AC MOTOR SPEED CONTROLS
THREE PHASE POWER CONTROL
UNINTERRUPTABLE POWER SUPPLIES
VIBRATION ANALYSIS
