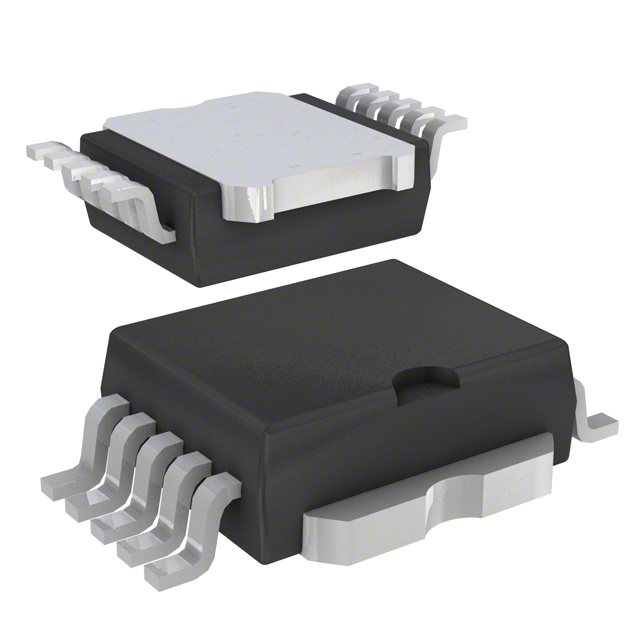

Image is for your reference only,please check specifications for details

VND05BSP - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC121753270
Category:
FET Driver
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 2Out 9A 0.2Ω Automotive 12Pin(10+2Tab) PowerSO Tube
Stock Locations:
Availability:
2,170 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.9

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The VND05BSP is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving resistive or inductive loads with one side grounded.
This device has two channels, and a common diagnostic. Built-in thermal shutdown protects the chip from over temperature and short circuit.
The status output provides an indication of open load in on state, open load in off state, overtemperature conditions and stuck-on to VCC.
Features
■ Output current (continuous): 9A @ Tc=85°C
■ 5V logic level compatible input
■ Thermal shutdown
■ Under voltage shutdown
■ Open drain diagnostic output
■ Inductive load fast demagnetization
■ Very low standby power dissipation

Show

VND05BSP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerSO-10
Supply Voltage (DC)	26.0V (max)
Number of Outputs	2 Output
Output Current	9 A
Supply Current	0.035 mA
Number of Channels	2 Channel
Load Current	9.00 A
Drain to Source Resistance (on) (Rds)	200 mΩ
Power Dissipation	59 W
Output Current (Max)	1.6 A
Output Current (Min)	9 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	59000 mW
Supply Voltage	6V ~ 26V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
