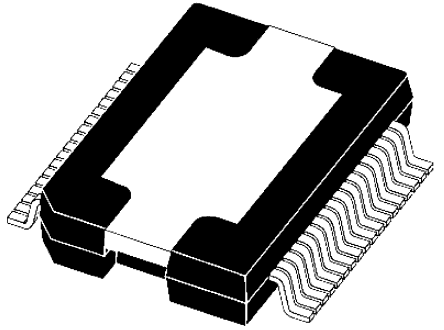

Image is for your reference only,please check specifications for details
- VNI8200XP - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC15478282
-
Category:Power Distribution
-
Package:PowerSSO-36
-
Datasheet:Datasheet 3D Model
-
Description:STMICROELECTRONICS VNI8200XP Smart Power Solid State Relay, High Side, Active High, 8Outputs, 36V, 1.1A, PowerSSO-36
-
Stock Locations:
-
Availability:207 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.98
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VNI8200XP is an octal high-side smart power Solid-state Relay with serial/parallel selectable interface on-chip. 8-channel Monolithic Driver featuring a very low supply current, with integrated SPI interface and high efficiency 100mA micropower step-down switching regulator peak current control loop mode. The IC, realized in STMicroelectronics™ VIPower™ technology is intended to drive any kind of load with one side connected to ground. Active channel current limitation combined with thermal shutdown, independent for each channel and automatic restart, protect the device against overload. Additional embedded functions are loss of GND protection that automatically turns off the device outputs in case of ground disconnection, undervoltage shutdown with hysteresis.
- 0.7A per channel Output current
- Serial/parallel selectable interface
- Short-circuit protection
- 8-bit and 16-bit SPI interface for IC command and control diagnostic
- Channel overtemperature detection and protection
- Thermal independence of separate channels
- Drives all type of loads (resistive, capacitive, inductive load)
- Loss of GND protection
- Power Good diagnostic
- Undervoltage shutdown with hysteresis
- Overvoltage protection (VCC clamping)
- Very low supply current
- Common fault open drain output
- IC warning temperature detection
- Channel output enable
- 100mA high efficiency step-down switching regulator with integrated boot diode
- Adjustable regulator output
- Switching regulator disable
- Channel output status LED driving 4x2 multiplexed array
- Fast demagnetization of inductive loads
VNI8200XP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | PowerSSO-36 |
| Number of Outputs | 8 Output |
| Input Voltage (DC) | 36.0 V |
| Output Current | 1.7 A |
| Supply Current | 5.6 mA |
| Number of Positions | 36 Position |
| Output Current (Max) | 700 mA |
| Output Current (Min) | 0.7 A |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Input Voltage | 36 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.4 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
