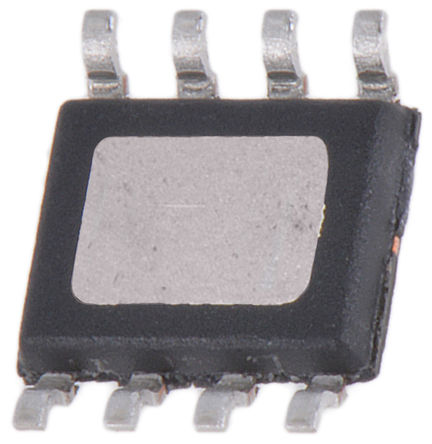

Image is for your reference only,please check specifications for details

ST1S10PHR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC791063
Category:
DC to DC Converter
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 18V Synchronous Step Down Single-Out 0.8V to 15.3V 3A 8Pin PowerSO T/R
Stock Locations:
Availability:
2,576 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST1S10PHR is a high efficiency step-down PWM current mode Switching Regulator with inhibit function. The device operates with an input supply range from 2.5 to 18V and provides an adjustable output voltage from 0.8V. It operates either at a 900kHz fixed frequency or can be synchronized to an external clock. The high switching frequency allows the use of tiny SMD external components, while the integrated synchronous rectifier eliminates the need for a Schottky diode. The regulator IC provides excellent transient response and is fully protected against thermal overheating, switching over-current and output short-circuit.
2% DC output voltage tolerance
Synchronous rectification
Internal soft start
Dynamic short-circuit protection
90% Typical efficiency
ESD sensitive device, take proper precaution while handling the device.

Show

ST1S10PHR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	900 kHz
Operating Voltage	2.5V ~ 18V
Number of Outputs	1 Output
Output Voltage	0.8V ~ 15.3V
Output Current	3 A
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	6 µA
Switching Frequency	900 kHz
Input Voltage (Max)	18 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	16.2 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	2.5 V
Input Voltage	2.5V ~ 18V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
