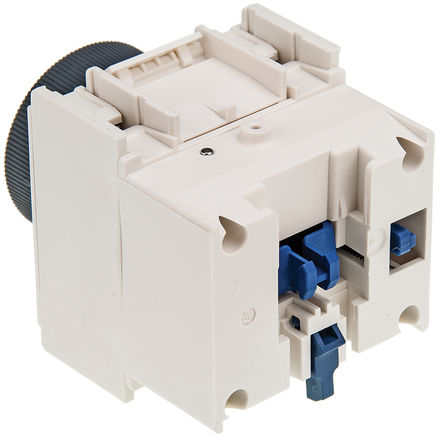

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LADR2 from Schneider Electric is a TeSys time delay auxiliary contact block with 1NO + 1NC pole contact composition. It is approved by CSA, UL, BS 4794, EN 60947-5-1, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards.
- Front mountable off-delay timer
- Time delay range from 0.1sec to 30sec
- Rated insulation voltage of 690V conforming to IEC 60947-5-1 standard
- Rated operational voltage of 690VAC at 25Hz to 400Hz
- Conventional free air thermal current of 10A at less than or equal to 60°C
- Irms rated making capacity of 250A at <= 690VDC and 140A at <= 690VAC conforming to IEC 60947-5-1
- Mechanical durability of 5Mcycles
- Minimum switching current of 5mA and switching voltage of 17V
- Operating ambient air temperature range from -5°C to 60°C
- IP2x degree of protection conforming to VDE 0106
LADR2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 2 Contact |
| Current Rating | 100 A |
| Contact Current Rating | 10 A |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Show | |
| Size-Height | 47.0 mm |
| Operating Temperature | -5℃ ~ 60℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
