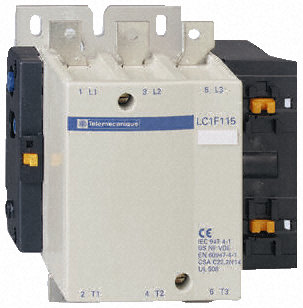

Image is for your reference only,please check specifications for details
- LC1F265 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC223874623
-
Category:Industrial Relay
-
Datasheet:Datasheet 3D Model
-
Description:SCHNEIDER ELECTRIC LC1F265 Contactor, TeSys F Contactor, 1kV, 3Pole, 3PST-NO, Panel, 350A
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Schneider Electric TeSys F Series – High-powered 3 Pole Contactors Suitable for Motor Control up to 1000 A and Power Switching up to 2600 A:**
- TeSys F is a range of high current contactors from 115 A to 1000 A designed for AC-3 applications and from 200 A to 2600 A for AC-1 applications. TeSys F series of contactors are specifically designed for the most demanding motor and power switching applications.
- **Features:**
- * TeSys F offers high performance in motor control & power switching applications
- * Proven reliability with high mechanical and electrical durability
- * Combined with the LR9 electronic relay or GV7 motor circuit breaker, AC-3 contactors are the ideal motor starters offering quick & simple selection
- * Shared accessories across the range offers greater flexibility and reduced inventory
- * Withdrawable-type coils enable fast and easy maintenance
- * TeSys F contactors guarantee electrical coordination with fuses and circuit breaker offers
- * 2 pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors
- * Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)
- * Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions
- * Wide range of AC (40-400 Hz) and DC operating coils
- * Terminal connections suitable for connecting bus bars & cables
- * Wide range of common accessories to improve flexibility, functionality & safety
- * Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions
- * Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.
- **Applications:**
- * Machinery, HVAC, Hoisting, Mining & Metals, Oil & Energy, Utilities, Wind turbines, Photovoltaic, data centers, etc.
- * Switching of resistive, inductive, capacitive and DC circuits
- * Frequency drives and soft starters
- * Light distribution circuits, induction furnaces, etc.
LC1F265 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Operating Voltage | 1 kV |
| Current Rating | 265 A |
| Power Rating | 140 kW |
| Contacts Type | 3PST-NO |
| Contact Current Rating | 350 A |
| Operating Temperature (Max) | 55 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Show | |
| Size-Length | 203 mm |
| Size-Width | 201.5 mm |
| Operating Temperature | -5℃ ~ 55℃ |
| RoHS | RoHS Compliant |
