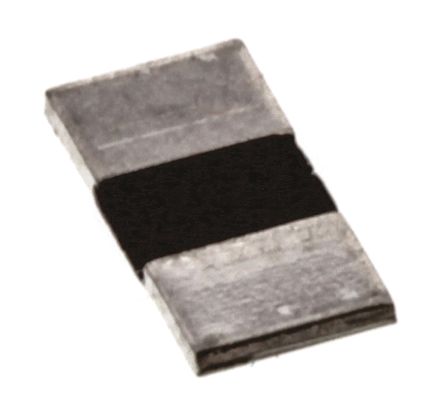

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The WSL series Power Metal Strip® surface-mount welded construction Current Sense Resistor is ideal for all types of current sensing, voltage division and pulse applications.
- Proprietary processing technique produces extremely low resistance values (down to 0.0005R)
- Construction is impervious against high sulphur environments (ASTM B 809-95 test method)
- Very low inductance 0.5 to 5nH
- Low thermal EMF (<3µV/°C)
WSL25121L000FEA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 6432 |
| Case/Package | 2512 |
| Voltage Rating (DC) | 30.0 mV |
| Capacitance Tolerance | ±1 % |
| Power Rating | 1 W |
| Part Family | Vishay_Dale |
| Resistance | 0.001 Ω |
| Resistance Tolerance | ±1 % |
| Input Power (Max) | 1 W |
| Operating Temperature (Max) | 170 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 6.35 mm |
| Size-Width | 3.18 mm |
| Size-Height | 0.635 mm |
| Operating Temperature | -65℃ ~ 170℃ |
| Temperature Coefficient | ±275 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
