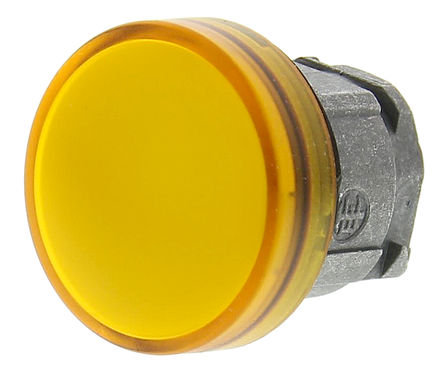

Image is for your reference only,please check specifications for details

ZB4BV053 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC16143183
Category:
LED Indicator Array
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
Indicator part; Head w/Yellow lens; Fits ZB4BV mnt base and integral LED module
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Pilot Light Head, Yellow Color, for Use with Body Comprising Light Module, Panel Mounting
XB4 22 mm push buttons, selector switches and pilot lights with metal bezel are designed for industrial applications and to combine ease of installation and robustness.
** Features**
* Simple and Secure Mounting Saves Time During Assembly
* Body Comprises of a Mounting Base with One or More Electrical Blocks and Can Be Fitted with Up to 9 Circuits
* Ergonomic Push Button Heads Ensure a Natural Center as Pressure Is Applied
* PROTECTED LED® — Light Modules that Offer 5 Different LED Colors with Built-In Circuit Protection
* 10 Amp, 600 V Contact Ratings
* UL, CSA and CE Marked
** Required for a Complete Switch:**
* Operator or Pilot Light
* Mounting Base with Contact Block(s)
* Mounting Base with Light Module — For Illuminated Operators or Pilot Lights
* Additional Contact Blocks, If Desired
* Lamp — For Direct Supply Light Modules
* E-Stop Legend Plate — If Desired for E-Stop Push Buttons

Show

ZB4BV053 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Case/Package	Module
Contact Current Rating	6.00 A
	Show
Size-Width	22 mm
Color	Yellow
Operating Temperature	-25℃ ~ 70℃
Housing Material	Metal
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
