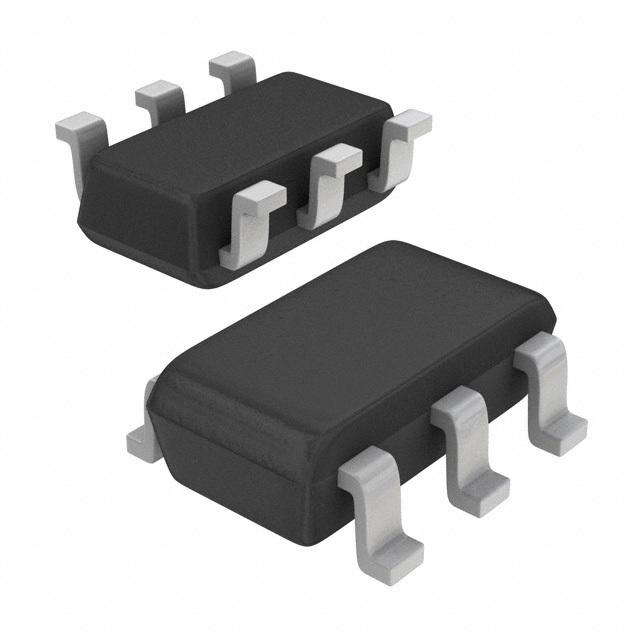

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZXGD3003E6TA is a high-speed non-inverting single MOSFET Gate Driver capable of driving up to 5A into a MOSFET or IGBT gate capacitive load from supply voltages up to 40V. With typical propagation delay times down to 2ns and rise/fall times down to 9ns this device ensures rapid switching of the power MOSFET or IGBT to minimize power losses and distortion in high current fast switching applications. Inherently rugged to latch-up and shoot-through and its wide supply voltage range allows full enhancement to minimize on-losses of the power MOSFET or IGBT. Its low input voltage requirement and high current gain allows high current driving from low voltage controller ICs and the optimized pin-out SOT23-6 package with separate source and sink pins eases board layout, enabling reduced parasitic inductance and independent control of rise and fall slew rates.

Show

ZXGD3003E6TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Supply Voltage (DC)	0.00V(min), 40.0V(max)
Power Rating	1.1 W
Rise/Fall Time	8.9 ns
Number of Outputs	1 Output
Output Current	1.4 A
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	1.1 W
Rise Time	8.9 ns
Output Voltage (Max)	39.6 V
Output Voltage (Min)	0.4 V
Output Current (Max)	5 A
Fall Time	8.9 ns
Fall Time (Max)	85 ns
Fall Time (Max)	77 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1100 mW
Supply Voltage	40 V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	0 V
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
