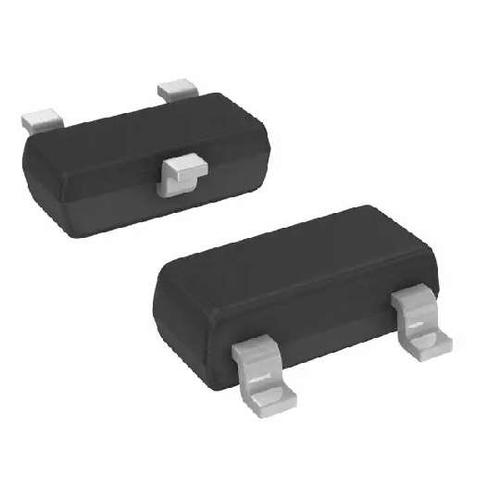

- ZXM61N02F 20 V 0.18 Ohm N-Channel Enhancement Mode Vertical DMOS FET - SOT-23
ZXM61N02FTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 20.0 V |
| Current Rating | 1.70 A |
| Drain to Source Resistance (on) (Rds) | 240 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 0.806 W |
| Input Capacitance | 160 pF |
| Drain to Source Voltage (Vds) | 20 V |
| Breakdown Voltage (Drain to Source) | 20.0 V |
| Breakdown Voltage (Gate to Source) | ±12.0 V |
| Continuous Drain Current (Ids) | 1.70 A |
| Rise Time | 4.20 ns |
| Input Capacitance (Ciss) | 160pF @15V(Vds) |
| Input Power (Max) | 625 mW |
| Power Dissipation (Max) | 625mW (Ta) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
