Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

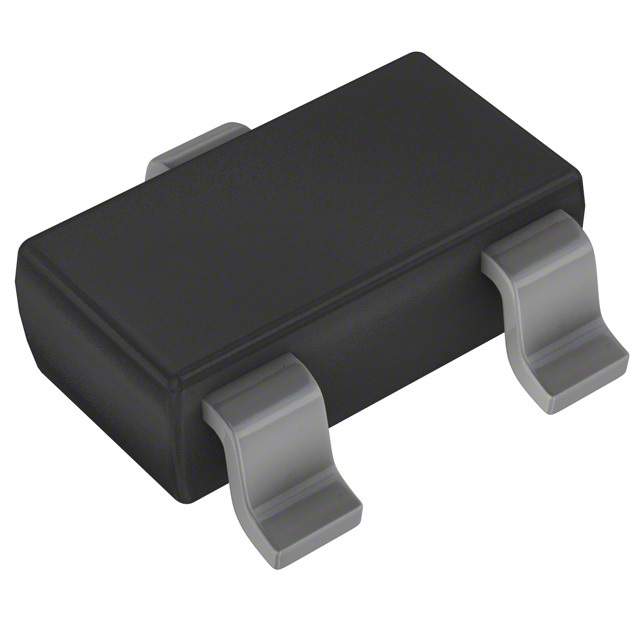

Case/Package | SOT-23-3 |
Voltage Rating (DC) | 30.0 V |
Current Rating | 3.50 A |
Drain to Source Resistance (on) (Rds) | 95.0 mΩ |
Polarity | N-Channel |
Power Dissipation | 1.5 W |
Drain to Source Voltage (Vds) | 30 V |
Breakdown Voltage (Drain to Source) | 30.0 V |
Breakdown Voltage (Gate to Source) | ±20.0 V |
Continuous Drain Current (Ids) | 3.90 A |
Rise Time | 2.5 ns |
Input Capacitance (Ciss) | 448pF @15V(Vds) |
Input Power (Max) | 1 W |
Fall Time | 5.3 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 1500 mW |
Show | |
Size-Length | 3.04 mm |
Size-Width | 1.4 mm |
Size-Height | 1.02 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
