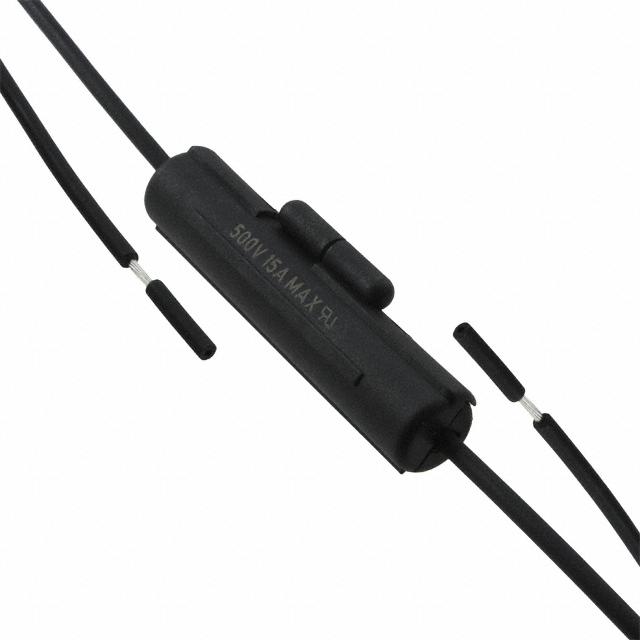

Image is for your reference only,please check specifications for details

01500322H - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC10533713
Category:
Fuse Holder
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Fuse Holder; In-Line; 15A; 500VAC/125VDC; 8in/18AWG Leads; UL94V-0; for 3AG/3AB Fuses
Stock Locations:
Availability:
56 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.94

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Littelfuse 150 Series In-Line Fuseholders**
The Littelfuse 150 series of in-line fuseholders have been professionally designed for use with 2AG and 5 x 20mm fuses. The thermoplastic fuseholders have been designed for use at a maximum current rating of 5 amperes at 32V for the 2AG size fuses.

Show

01500322H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Voltage Rating (DC)	500 V
Voltage Rating (AC)	500 V
Current Rating	15 A
Number of Circuits	1 Circuit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	125 VDC
	Show
Size-Length	59 mm
Size-Height	17.8 mm
Contact Material	Brass
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
