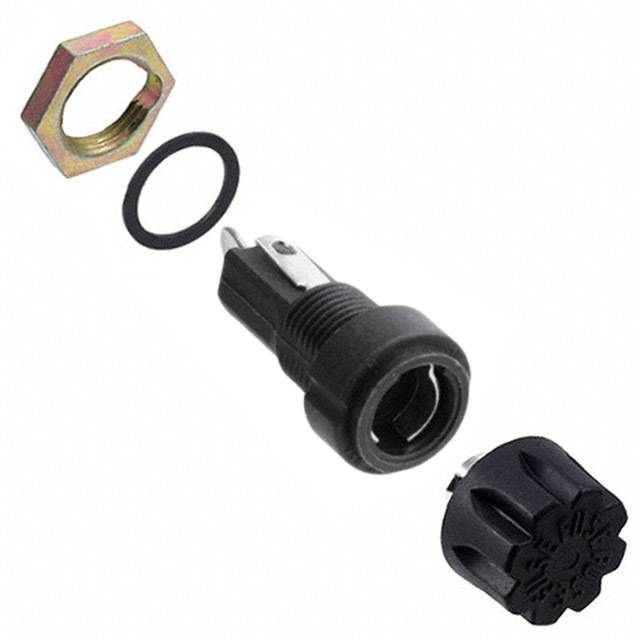

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Littelfuse 342 Series Panel Mount fuse Holders**
The Littelfuse 342 series panel mount fuseholders are a robust solution to a variety of application requirements. The 342 series of fuseholder are compatible with 3AG fuses and available with straight or right-angle body types. The series is available with a choice of solder, 3/16" Q.C or 1/4" Q.C connection types.

Show

03420014H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Lug, Panel
Case/Package	-
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	20 A
Number of Circuits	1 Circuit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 V
	Show
Size-Length	51.0 mm
Size-Height	45.21 mm
Size-Diameter	17.5 mm
Color	Black
Contact Material	Brass
Material	Thermoplastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
