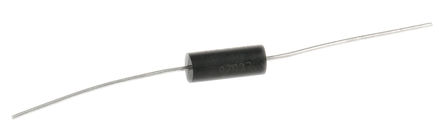

Image is for your reference only,please check specifications for details

UPF50B500RV - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC58687334
Category:
Through-Hole Resistor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
UPF50 Series Axial Through Hole Fixed Resistor 500Ω +/-0.1% 0.5W(1/2W) +/-5ppm/degC
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UPF50B500RV is a 500R 500mW through-hole mounting high precision metal film Leaded Resistor with tinned iron cap terminals and tinned annealed copper lead wire. The UPF series resistor features very tight tolerance down to ±0.02% and extremely low TCR down to ±5PPM/°C.
Excellent stability
No deterioration of coatings and markings resistance to solvent
-55 to 125°C Operating temperature range

Show

UPF50B500RV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	300 V
Capacitance Tolerance	±0.1 %
Power Rating	500 mW
Resistance	500 Ω
Resistance Tolerance	±0.1 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	300 V
	Show
Size-Length	10.2 mm
Size-Diameter	Φ4.00mm
Lead Length	25 mm
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±5 ppm/℃
Product Lifecycle Status	Active
Packaging	Ammo Pack
Minimum Packing Quantity	100
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
