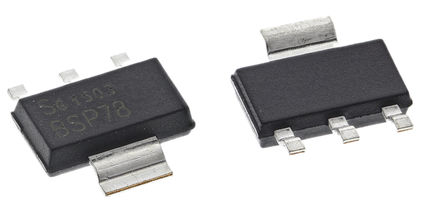

Image is for your reference only,please check specifications for details

BSP78 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC1542353
Category:
FET Driver
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 1 Driver, 24A, MOS, PDSO4, GREEN, PLASTIC, SOT-223, 4Pin
Stock Locations:
Availability:
10,412 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.65

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSP78 is a N-channel low-side vertical power FET Switch in smart SIPMOS® technology and fully protected by embedded protection functions. It has thermal shutdown with auto restart and also logic level input.
Input protection (ESD)
Overload protection
Short-circuit protection
Overvoltage protection
Current limitation
Analogue driving possible
ESD sensitive device, take proper precaution while handling the device.

Show

BSP78 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Supply Voltage (DC)	0.00V(min), 10.0V(max)
Power Rating	3.8 W
Number of Outputs	1 Output
Input Voltage (DC)	42.0 V
Output Current	3 A
Number of Channels	1 Channel
Number of Positions	4 Position
Output Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.2V ~ 10V
Input Voltage	42 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
