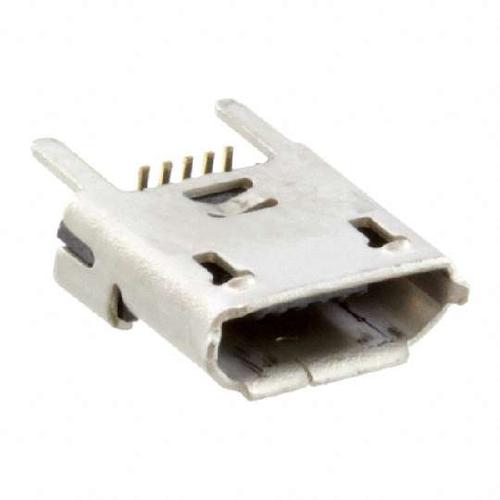

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Make your product"s components work properly with the micro USB type b 1051330001 audio and video connector from Molex. This RCP connector"s 5 contacts that are made out of copper alloy and plated with gold. It has a receptacle type gender. It has a right angle body orientation. This connector has a single port. Its pitch is 0.65 mm. It has a maximum voltage rating of 30 VAC. This device has a maximum current rating of 1.8 A/contact. 1051330001 is housed in thermoplastic. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its 5 terminals use the solder termination method. This part has an operating temperature range of -30 °C to 85 °C.
1051330001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | - |
| Number of Contacts | 5 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Current Rating | 1A, 1.8A |
| Orientation | Vertical |
| Number of Mating Cycles | 10000 Cycle |
| Current Rating (Max) | 1.8A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating (Max) | 30 VAC |
| Voltage Rating | 30 VAC |
| Show | |
| Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -35℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
