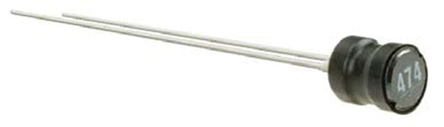

Image is for your reference only,please check specifications for details

11R473C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC28734019
Category:
Inductor
Package:
-
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 11R473C Inductor, Radial, 1100R Series, 47µH, 500mA, 500mA, 0.54Ω, ± 10%
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Resist changes in electric current flow in your electrical design with this general purpose 11R473C leaded inductor from Murata Power Solutions. This part has a pitch of 2 mm. This leaded inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with wirewound technology. Its test frequency is 1K Hz. This product is 7.5 mm tall with a diameter of 5 mm. This leaded inductor has a maximum DC current of 500m A with a maximum resistance of 540m Ohm. It has an inductance of 47u H. It has a tolerance of 10%.

Show

11R473C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	-
Current Rating	500 mA
Capacitance Tolerance	±10 %
Inductance	47 µH
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤540 mΩ
Current Rating (DC)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.54 Ω
	Show
Size-Length	7.5 mm
Size-Height	7.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
