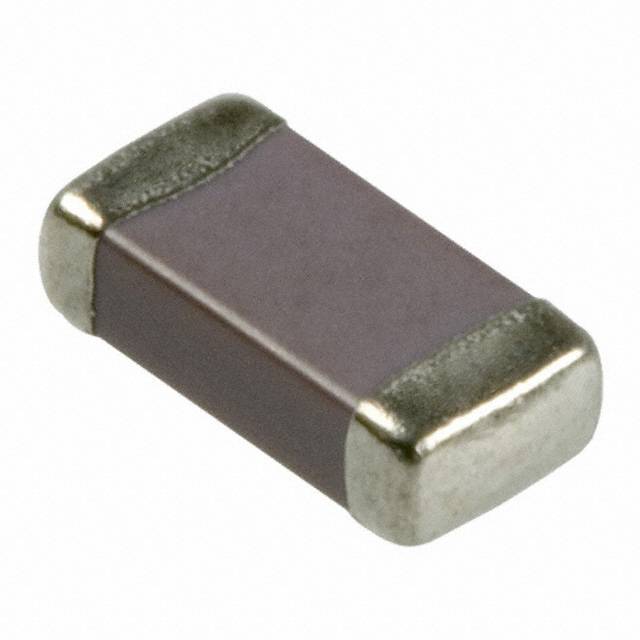

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 12065A270JAT2A is a surface-mount (SMT) Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The C0G (NP0) is the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. Modern C0G (NP0) formulations contain neodymium, samarium and other rare earth oxides. C0G (NP0) ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0±30ppm/°C which is less than ±0.3% ΔC from -55 to 125°C. Capacitance drift or hysteresis for C0G (NP0) ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G (NP0), one-fifth that shown by most other dielectrics.
Reflow/wave soldering method
EIA Class I dielectric
C0G (NP0) formulations show no aging characteristics
Low parasitics
Excellent EMI filtering capabilities
Standard product

Show

12065A270JAT2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	50.0 V
Insulation Resistance	100 GΩ
Capacitance	27 pF
Capacitance Tolerance	±5 %
Dielectric Characteristic	C0G/NP0
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
	Show
Size-Length	3.20 mm
Size-Width	1.60 mm
Size-Height	0.94 mm
Material	C0G/-55℃~+125℃
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
