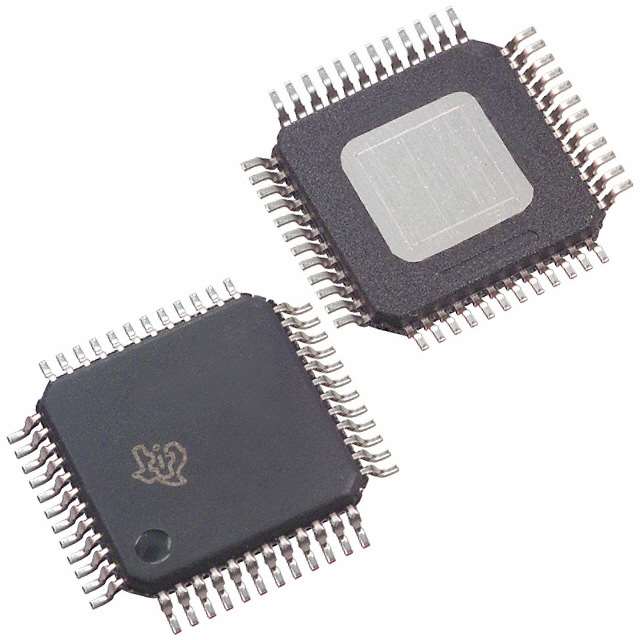

Image is for your reference only,please check specifications for details

THS8136PHP - TI
Manufacturer:
TI
ManyChip's Part#:
MC107138692
Category:
Digital to Analog, DAC IC
Package:
HTQFP-48
Datasheet:
Datasheet 3D Model
Description:
Digital to Analog Converters - DAC Triple 10B 180MSPS Graphics & Video DAC
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The THS8136 is a general-purpose triple high-speed digital-to-analog (D/A) converter optimized for use in video/graphics applications. The device operates from 3.3-V analog and 1.8-V digital supplies with D/A converter performance assured at sampling rates up to 180 MHz. The THS8136 consists of three 10-bit D/A converters and additional circuitry for bi-level sync and blanking level generation. The current-steering DACs have been specifically designed to produce standard video output levels when directly connected to a single-ended double-terminated 75-Ω coaxial cable.
By providing a dc offset in sync insertion mode, the THS8136 can generate a bi-level sync on the AG DAC output without sacrificing DAC resolution. Support is also provided for insertion of RGB or YPbPr reference or blanking levels, irrespective of the the DAC input codes. A generic DAC mode is provided for applications not requiring sync generation. All digital inputs are 1.8-V compatible.
FEATURES
• Triple 10-Bit Digital-to-Analog Converters(DACs)
• 180-MSPS Operation
• Direct Drive of Double-Terminated 75-Ω Load Into Standard Video Levels
• Bi-Level Sync and Blank Level Generation
• Internal Voltage Reference
• Low-Power Operation From 3.3-V Analog and 1.8-V Digital Supply Levels
• 1.8-V Compatible Inputs
APPLICATIONS
• Graphics and Video Generation
• High-Resolution Image Processing
• Generic Triple D/A Converter

Show

THS8136PHP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTQFP-48
Number of Channels	3 Channel
Sample Rate	180 Msps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	475 mW
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
