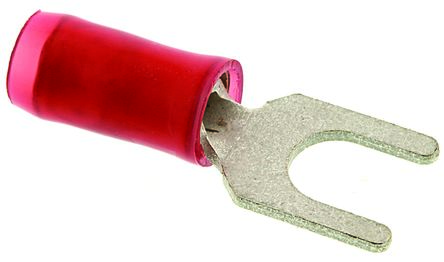

Image is for your reference only,please check specifications for details
- 130517 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC21620169
-
Category:Solderless Terminal
-
Datasheet:Datasheet 3D Model
-
Description:U terminal 0.25mm² 1.5mm² Hole Ø=4.3mm Partially insulated Red TE Connectivity 130517 1 pc(s)
-
Stock Locations:
-
Availability:10,931 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 331.66
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PIDG 22-16 SPADE M4
- Product Highlights
- Terminal Shape = Spade Tongue
- Receptacle Style = Straight
- Body Style = PIDG
- Barrel Type = Closed Barrel
- Wire/Cable Type = Regular Wire
130517 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Wire Gauge | 16AWG ~ 22AWG |
| Contact Plating | Tin |
| Operating Temperature (Max) | 105 ℃ |
| Voltage Rating (Max) | 300 VAC |
| Show | |
| Size-Length | 20.80 mm |
| Size-Width | 7.1 mm |
| Size-Thickness | 0.8 mm |
| Color | Red |
| Contact Material | Copper |
| Material | Copper |
| Insulation Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
