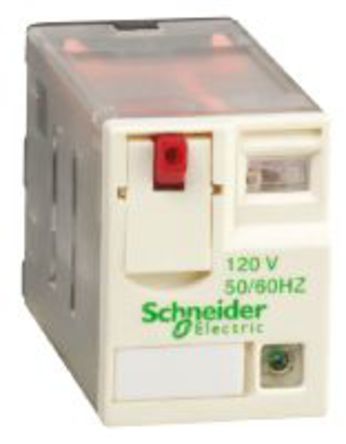

Image is for your reference only,please check specifications for details
- RXM4AB2F7 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC83276048
-
Category:Industrial Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Relay; 4 C/O Cntcts; 120VAC Ctrl; 250V Swtchng; 6A; Pushbutton; w/LED; Flat Pin; Plug-In
-
Stock Locations:
-
Availability:11 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.21
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **RXM Series Miniature Relays with LED**
- The compact Zelio RXM miniature relays with LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC.
RXM4AB2F7 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 14 Pin |
| Case/Package | - |
| Voltage Rating (DC) | 28 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 6 A |
| Contacts Type | 4PDT |
| Contact Current Rating | 6 A |
| Coil Voltage | 120 VAC |
| Coil Voltage (AC) | 120 V |
| Coil Resistance | 4.43 kΩ |
| Carry Current | 6.00 A |
| Coil Power | 1.2 W |
| Operating Temperature (Max) | 55 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 21 mm |
| Size-Height | 27 mm |
| Contact Material | Silver |
| Operating Temperature | -40℃ ~ 55℃ |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
