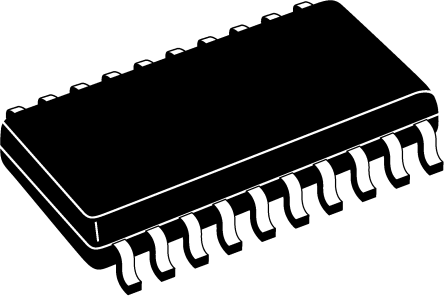

Image is for your reference only,please check specifications for details

AD7628KRZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1089008
Category:
Digital to Analog, DAC IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7628KRZ Digital to Analogue Converter, Dual, 8Bit, Parallel, 10.8V to 15.75V, SOIC, 20Pins
Stock Locations:
Availability:
219 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD7628 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in small 0.3" wide 20-pin DIPs and in 20-terminal surface mount packages.
Separate on-chip latches are provided for each DAC to allow easy microprocessor interface.
Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7628"s load cycle is similar to the write cycle of a random access memory, and the device is bus compatible with most 8-bit microprocessors, including 6502, 6809, 8085, Z80.
The device operates from a +12 V to +15 V power supply and is TTL-compatible over this range. Power dissipation is a low 20 mW.
Both DACs offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.
**APPLICATIONS**
Disk Drives
Programmable Filters
X-Y Graphics
Gain/Attenuation
### Features and Benefits
On-Chip Latches for both DACs
+12 V to +15 V Operation
DACs matched to 1%
Four Quadrant Multiplication
TTL/CMOS Compatible from +12 V to +15 V
Latch Free (Protection Schottkys not Required)

Show

AD7628KRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Number of Outputs	2 Output
Supply Current	2 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	0.45 W
Sample Rate	2.9 Msps
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Number of DACs	2 DAC
Supply Voltage	10.8V ~ 15.75V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	12 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
