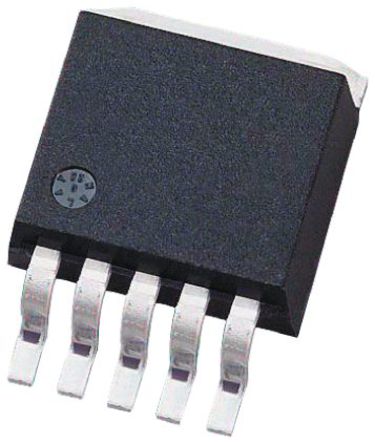

Image is for your reference only,please check specifications for details

NCV4275ADS50R4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1050213
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
Fixed LDO Voltage Regulator, 5.5V to 42V, 250mV Dropout, 5Vout, 450mAout, TO-263-5
Stock Locations:
Availability:
135 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.73

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you need to maintain a steady voltage on your circuit, then this LDO NCV4275ADS50R4G linear regulator from ON Semiconductor is perfect for you! It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.25@300mA V. This voltage regulation device"s single output can produce a current up to 0.45(Typ) A. Use this part at voltages between 5.5 V and 42 V. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 30mV and line regulation of 15mV is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.5@300mA V. This voltage regulation device has an operating temperature range of -40 °C to 150 °C.

Show

NCV4275ADS50R4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Operating Voltage	5.5V ~ 42V
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	450 mA
Number of Positions	5 Position
Quiescent Current	35 mA
voltage rating	0.25V @300mA
Input Voltage (Max)	42 V
Input Voltage (Min)	5.5 V
Output Current (Max)	450 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	5.5V ~ 42V
	Show
Size-Length	10.24 mm
Size-Width	9.347 mm
Size-Height	4.572 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
