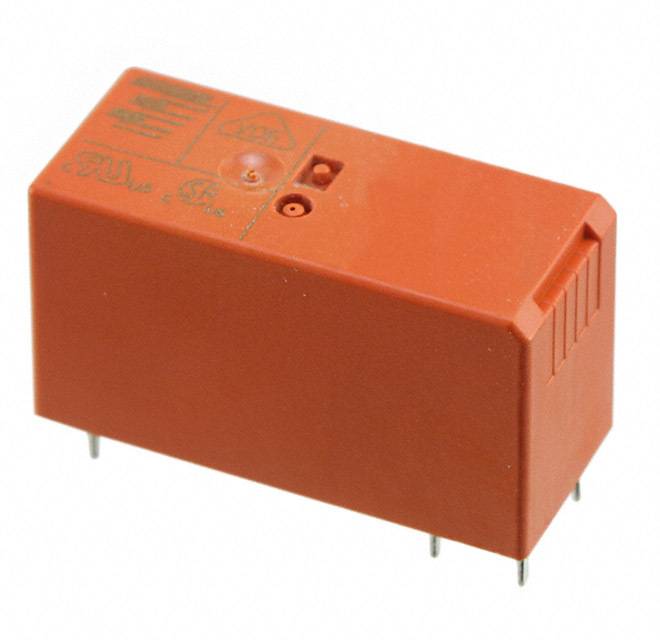

Image is for your reference only,please check specifications for details
- 1415898 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC14122596
-
Category:Power Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.033A (COIL), 12VDC (COIL), 400mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
-
Stock Locations:
-
Availability:14 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.29
Updated at 18/06/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power PCB Relay RT1 Inrush, monostable and bistable versions available. Standard 16 Amps global footprint.
1415898 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | - |
| Voltage Rating (AC) | 400 V |
| Current Rating | 16 A |
| Input Voltage (DC) | 12.0 V |
| voltage rating | 1.20 V |
| Contact Current Rating | 16 A |
| Coil Voltage | 12 VDC |
| Coil Current | 33.33 mA |
| Coil Power (DC) | 400 mW |
| Coil Resistance | 360 Ω |
| Current Rating (Max) | 16 A |
| Coil Voltage (DC) | 12 V |
| Input Power (Max) | 4 KVA |
| Switching Current (Max) | 16 A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 12 VDC |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 12.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Tin Oxide |
| Weight | 14 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
