165085 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC12083637
Category:
Terminal
Package:
-
Datasheet:
Datasheet 3D Model
Description:

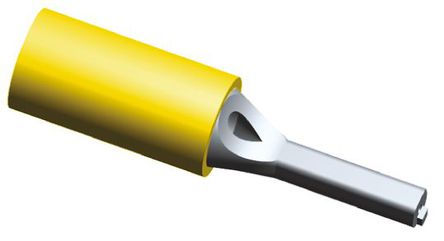

AMP - TE CONNECTIVITY 165085Pin Terminal, PLASTI-GRIP Series, Crimp, 12AWG, 10AWG, 6mm², 2.591mm
Stock Locations:
Availability:
253 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PLASTI-GRIP series Solderless Terminal and Splice designed specifically to answer the need for inexpensive, insulated electrical terminations. It accommodate wire sizes from 22AWG through 2/0AWG. Carefully engineered application tooling has been developed to ensure uniformly high quality terminations. Tool and terminal has been designed as a team to promote ease and speed of application and at the same time to provide precise crimping pressure for every wire size. The wire and the terminal barrel form a homogeneous mass of metal, providing a connection of maximum conductivity, tensile strength and high resistance to corrosion. The quality performance, the facility of installation and the inherent simplicity make them ideal for many industrial applications. PLASTI-GRIP products are available as rings, spades, flanged spaded, slotted rings, splices and several other varieties. Wire ranges for the terminals and splices are 22AWG through 2/0 and stud sizes from #2 through 1/2 inch.
Serrations in the crimp barrel provide maximum contact and tensile strength after crimping
600V Operating voltage
105°C Rated temperature

Show

165085 Specifications
