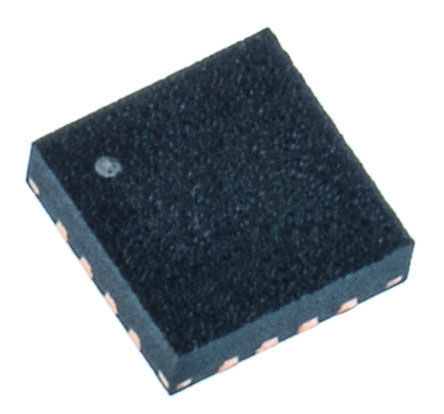

THS4541IRGTT - TI
Manufacturer:
TI
ManyChip's Part#:
MC30509375
Category:
Operational Amplifier, OP Amp IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS4541IRGTT Differential Amplifier, Negative Rail Input, 1 Amplifiers, 100µV, 119dB, 620MHz, -40℃, 125℃
Stock Locations:
Availability:
40 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.73

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS4541IRGTT is a low-power voltage-feedback Fully Differential Amplifier (FDA) with an input common-mode range below the negative rail and rail-to-rail output. Designed for low-power data acquisition systems where high density is critical in a high-performance analog-to-digital converter (ADC) or digital-to-analog converter (DAC) interface design. The THS4541 features the negative-rail input required when interfacing a DC-coupled, ground-centered, source signal. This negative-rail input, with rail-to-rail output, allows for easy interface between single-ended, ground-referenced, bipolar signal sources and a wide variety of SAR, ΔΣ or pipeline ADCs using only a single +2.7 to +5.4V power supply.
Fully differential amplifier (FDA) architecture
Output common-mode control
Negative rail input (NRI)
Robust operation for load >=50R
10.1mA (5V supply) Quiescent current
2.2nV/√Hz (f>100kHz) Low offset drift
100dB Typical CMRR
Green product and no Sb/Br

Show

THS4541IRGTT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Output Current	100mA @5V
Supply Current	10.1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	85dB ~ 100dB
Input Offset Drift	500 nV/K
Bandwidth	620 MHz
Slew Rate	1.50 kV/μs
Gain Bandwidth Product	850 MHz
Input Offset Voltage	100 µV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	620 MHz
Minimum CMRR Range	85 dB
Supply Voltage (Max)	5V ~ 7V
	Show
Size-Length	3.15 mm
Size-Width	3.15 mm
Size-Height	0.92 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
