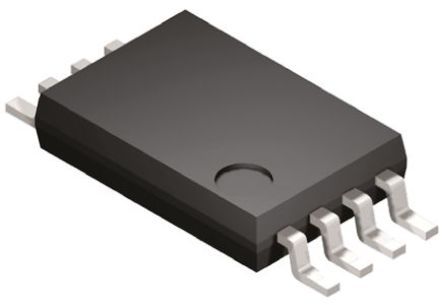

Image is for your reference only,please check specifications for details

LM2903PT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC6507314
Category:
Comparator, Analog Comparator IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS LM2903PT Analogue Comparator, Dual, Low Power, 2, 1.3µs, ± 1V to ± 18V, TSSOP, 8Pins
Stock Locations:
Availability:
9,500 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM2903PT is a low-power dual Voltage Comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. In addition, the device has unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.
Very low supply current (0.4mA) - independent of supply voltage
Input common-mode voltage range includes negative rail
250mV Low output saturation voltage
Differential input voltage range equal to the power supply voltage
TTL, DTL, ECL, MOS, CMOS compatible outputs

Show

LM2903PT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Output Current	16mA @5V
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	625 W
Thermal Resistance	120 ℃/W
Input Offset Voltage	7 mV
Input Bias Current	250 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	18 V
	Show
Size-Length	4.5 mm
Size-Width	3.1 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
