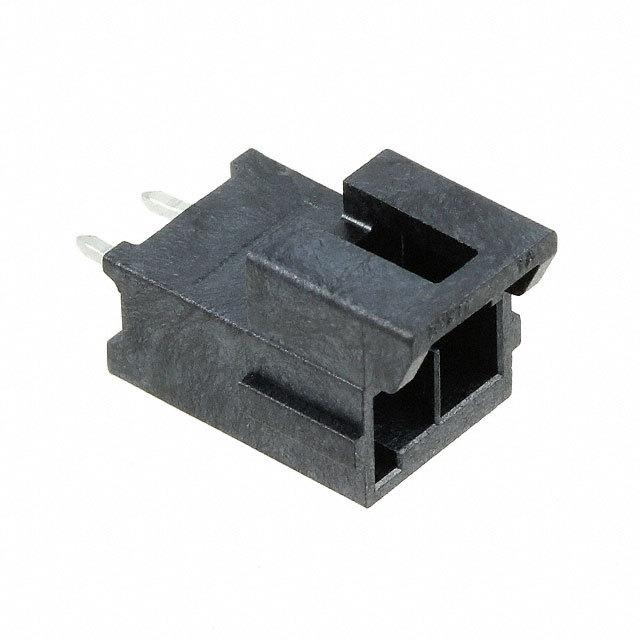

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Use this 1722861102 power connector from Molex to connect a power supply to a circuit. This HDR connector"s 2 contacts that are made out of copper alloy and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 400 VDC|400VAC. This connector has a single port. It has a straight body orientation. Its pitch is 3.5 mm. This device has a maximum current rating of 14 A/contact. The item will be shipped in tray orientation. Its 2 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 120 °C.
1722861102 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 2 Contact |
| Gender | Male |
| Contact Plating | Tin |
| Number of Rows | 1 Row |
| Number of Positions | 2 Position |
| Number of Mating Cycles | 25 Cycle |
| Current Rating (Max) | 14A/触头 |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 400 V |
| Show | |
| Size-Height | 14 mm |
| Housing Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
