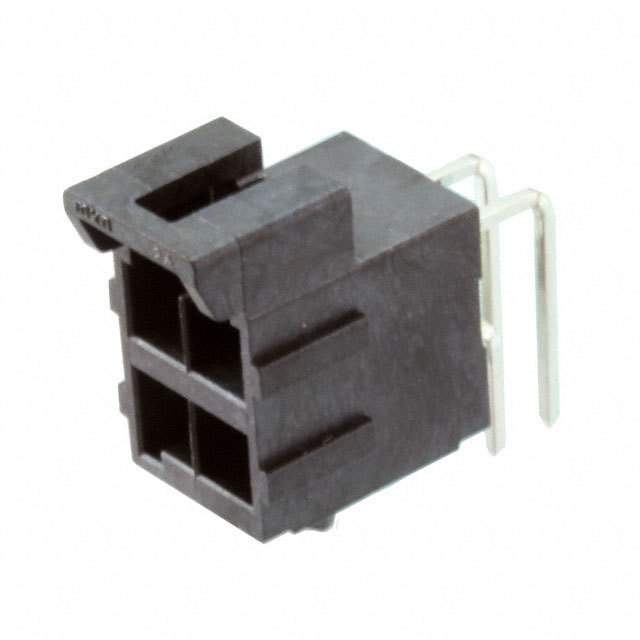

Image is for your reference only,please check specifications for details
- 1723161104 - Molex
-
Manufacturer:Molex
-
ManyChip's Part#:MC123622303
-
Category:Header, Receptacle
-
Package:Through Hole
-
Datasheet:Datasheet 3D Model
-
Description:Conn Power HDR 4POS 3.5mm Solder RA Thru-Hole 4 Terminal 1Port Ultra-Fit Tray
-
Stock Locations:
-
Availability:266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.8
Updated at 04/04/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The best way to get minimal losses of power in your circuit is by operating it with the 1723161104 power connector from Molex. This HDR connector"s 4 contacts that are made out of copper alloy and plated with tin over nickel. This connector has a single port. It has a header type gender. Its pitch is 3.5 mm. It has a right angle body orientation. It has a maximum voltage rating of 400 VDC|400VAC. This device has a maximum current rating of 14 A/contact. The item will be shipped in tray orientation. This power connector has an operating temperature range of -40 °C to 120 °C. Its 4 terminals use the solder termination method.
1723161104 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Through Hole |
| Number of Contacts | 4 Contact |
| Gender | Male |
| Contact Plating | Tin |
| Number of Rows | 2 Row |
| Number of Positions | 4 Position |
| Number of Mating Cycles | 25 Cycle |
| Current Rating (Max) | 14A/触头 |
| Operating Temperature (Max) | 120 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Housing Color | Black |
| Color | Black |
| Contact Material | Copper Alloy |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
