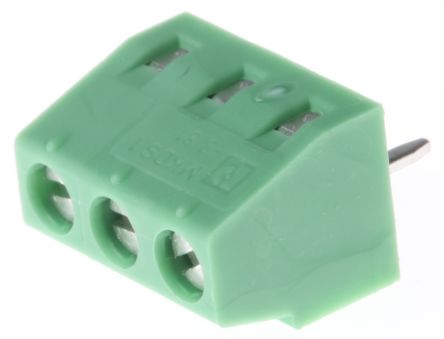

Image is for your reference only,please check specifications for details

1727023 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC7834740
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 1727023 Wire-To-Board Terminal Block, 3.81mm, 3Positions, 26AWG, 16AWG, 1.5mm², Screw
Stock Locations:
Availability:
1,904 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1727023 is a 3-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M2 screw connection. This MKDS 1/ 3-3,81 terminal block has fully developed contact geometries and surfaces. It accepts 26 to 16AWG wire range.
Space-saving and safe
Single-row type with horizontal connection direction
5mm Stripping length
UL94V-0 Flammability rating

Show

1727023 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	3.81 mm
Number of Contacts	3 Contact
Wire Gauge	16AWG ~ 30AWG
Voltage Rating (AC)	160 V
Current Rating	10 A
Number of Rows	1 Row
Number of Circuits	3 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Current Rating (Max)	13.5 A
Voltage Rating (Max)	200 V
Voltage Rating	300 V
Operating Voltage (Max)	200 V
	Show
Size-Length	11.42 mm
Size-Width	7.3 mm
Size-Height	8.5 mm
Housing Color	Green
Color	Green
Contact Material	Copper Alloy
Material	Nylon
Insulation Material	Nylon
Housing Material	Nylon
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536904000
ECCN Code	EAR99
