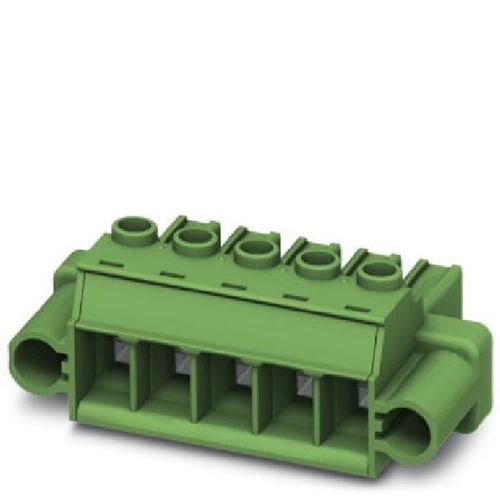

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Phoenix Contact 7.62mm COMBICON PC 5 Series 600V Plug-in Terminal Block Connectors**
- 7.62mm pitch COMBICON PC 5 series 600V plug-in cable mount terminal block connectors with a screw connection for 6mm2 flexible cable or 10mm2 solid cable. These 7.62mm COMBICON PC 5 series 600V plug-in terminal block connectors have a high current carrying capacity of 41A, unrestricted 600 V UL approval and an integrated double steel spring to ensure contact safety Part numbers prefixed with 17778 and 17779 (-STF1) have a screw flange Part numbers prefixed with 1778 (-STCL) have a toolless click and lock system and are compatible with COMBICON PC 5 headers and STGCL plug components.
1777862 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Number of Contacts | 5 Contact |
| Wire Gauge | 8AWG ~ 24AWG |
| Contact Plating | Tin |
| Current Rating | 41 A |
| Number of Rows | 1 Row |
| Number of Circuits | 5 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 5 Position |
| Current Rating (Max) | 41 A |
| Voltage Rating (Max) | 1000 V |
| Operating Voltage (Max) | 1000 V |
| Show | |
| Size-Height | 19.7 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Copper Alloy |
| Housing Material | Plastic |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
