Description

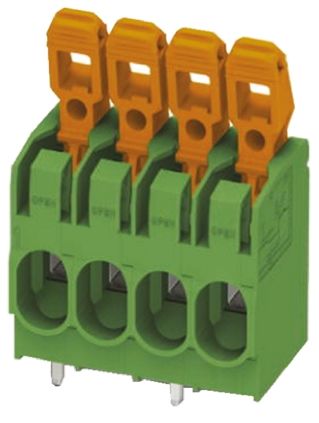

- **Phoenix Contact COMBICON PLH 7.5 mm PCB Terminal Blocks**
- The 7.5 mm pitch PLH series of Horizontal, PCB mounted, Terminal Blocks from Phoenix Contact feature a push-lock spring type connection with low actuation force lever operation. The 7.5 mm PLH PCB Terminal Block can accept solid or stranded wire from 0.2 mm2 to 6 mm2 (24-10 AWG). The rated current / cross section for the 7.5 mm PLH PCB Terminal Block is 41 A/6 mm2. The material Inflammability class is UL 94 V0 for the 7.5 mm PLH PCB Terminal Block. The PCB requires a 2 mm diameter hole for the Zig-Zag pinning pattern of the 7.5 mm PLH Terminal Block.
1792122 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 12.5 mm |
| Number of Contacts | 4 Contact |
| Wire Gauge | 10AWG ~ 24AWG |
| Current Rating | 41 A |
| Number of Rows | 1 Row |
| Number of Circuits | 4 Circuit |
| Number of Positions | 4 Position |
| Current Rating (Max) | 41 A |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 1000 V |
| Voltage Rating | 1 kV |
| Operating Voltage (Max) | 1000 V |
| Show | |
| Size-Length | 34 mm |
| Size-Width | 37.1 mm |
| Size-Height | 24.1 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Copper Alloy |
| Material | Polyamide (PA) |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
