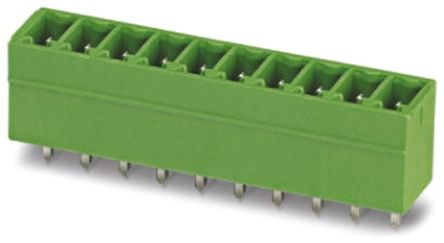

Image is for your reference only,please check specifications for details

1843622 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC19636472
Category:
Terminal Block, Connector Terminal
Package:
-
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 1843622 Terminal Block, Header, 3.5mm, 4Positions, 8A, 160V, Through Hole Vertical
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1843622 is a 4-position 3.5mm 1-level base strip Header Connector with PBT insulator and green colour. Suitable for the wave soldering processes. Through hole vertical block orientation and soldering mounting, plug-in direction vertical to the PCB.
UL94V-0 Flammability rating
Tin-plated contacts
Low-profile pin strips with compact pitches
Individual position coding by inserting coding profiles

Show

1843622 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	-
Pin Pitch	3.5 mm
Number of Contacts	4 Contact
Gender	Male
Contact Plating	Tin
Voltage Rating (DC)	640 mV
Voltage Rating (AC)	160 V
Current Rating	8 A
Number of Rows	1 Row
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Current Rating (Max)	8 A
Voltage Rating	160 V
	Show
Size-Length	15.4 mm
Size-Width	7.25 mm
Size-Height	7.25 mm
Housing Color	Green
Color	Green
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694040
ECCN Code	EAR99
