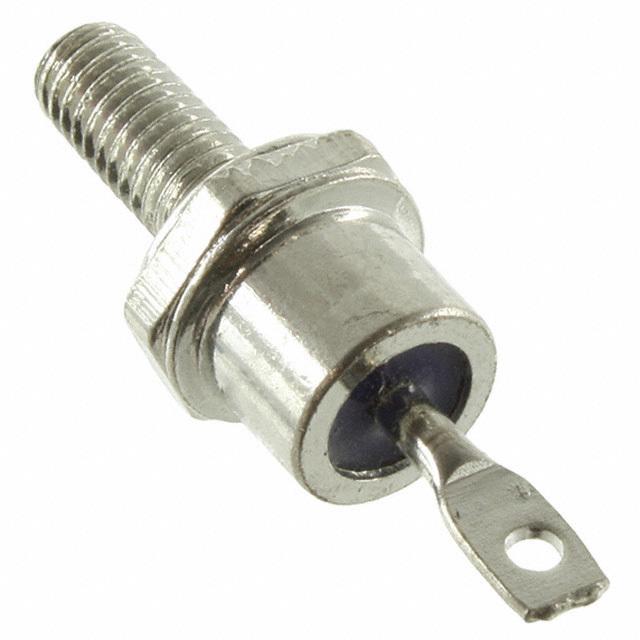

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1N1206A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	2 Pin
Case/Package	DO-4
Forward Voltage	1.1V @12A
Thermal Resistance	2℃/W (RθJC)
Forward Current	12 A
Maximum Forward Voltage (Max)	1.1 V
Forward Current (Max)	12 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	Show
Size-Height	22.79 mm
Operating Temperature	150 ℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
