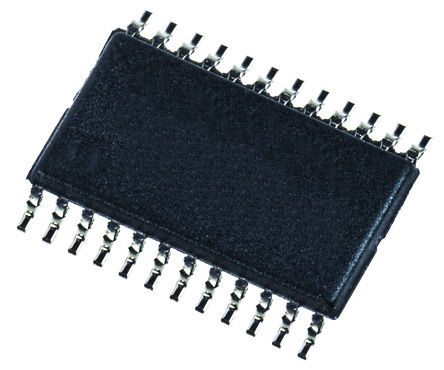

TPA3007D1PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC32491233
Category:
Audio Amplifier IC
Package:
TSSOP-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA3007D1PW Audio Power Amplifier, D, 1Channel, 6.5W, 8V to 18V, TSSOP, 24Pins
Stock Locations:
Availability:
277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA3007D1PW is a 6.5W mono bridge-tied load (BTL) Class D Audio Power Amplifier with high efficiency, eliminating the need for heat sinks. The TPA3007D1 can drive 8R speakers with only a ferrite bead filter required to reduce EMI. The gain of the amplifier is controlled by two input terminals, GAIN1 and GAIN0. This allows the amplifier to be configured for a gain of 12, 18, 23.6 and 36dB. The differential input stage provides high common mode rejection and improved power supply rejection. The amplifier also includes de-pop circuitry to reduce the amount of pop at power-up and when cycling shutdown.
Short-circuit protection
Replaces large LC filter with small, ferrite bead filter in most applications
Improved efficiency
Improved SNR
<1µA Typical shutdown control
Green product and no Sb/Br

Show

TPA3007D1PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TSSOP-24
Supply Voltage (DC)	18.0 V
Supply Current	15 mA
Number of Channels	1 Channel
Number of Positions	24 Position
Power Dissipation	1.43 W
Quiescent Current	8.00 mA
Bandwidth	20.0 kHz
Output Power	6.5 W
Gain	36 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1430 mW
Supply Voltage	8V ~ 18V
	Show
Size-Length	7.8 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
