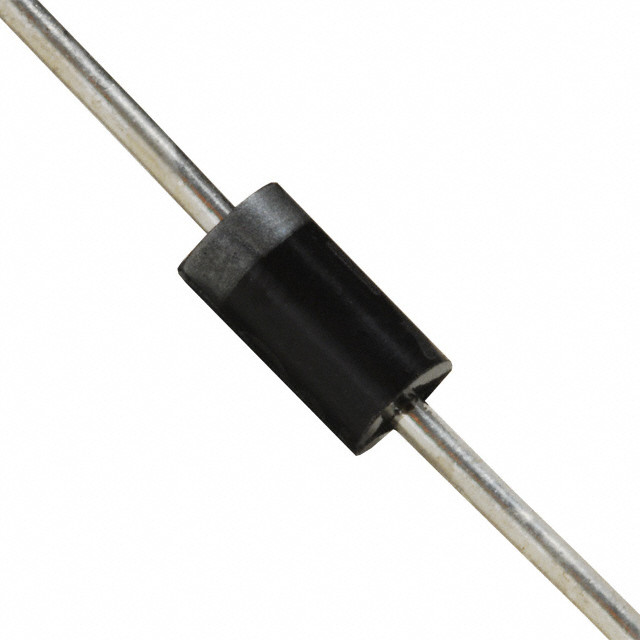

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Rectifiers (Glass Passivated)
- Features
- • Low forward voltage drop.
- • High surge current capability.
- • High reliability.
- • High current capability.
1N4002GP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AL |
| Voltage Rating (DC) | 100 V |
| Current Rating | 1.00 A |
| Capacitance | 8.00 pF |
| Output Current | ≤1.00 A |
| Forward Voltage | 1.1V @1A |
| Polarity | Standard |
| Thermal Resistance | 50℃/W (RθJA) |
| Maximum Forward Voltage (Max) | 1.1V @1A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
