Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 6 Pin |

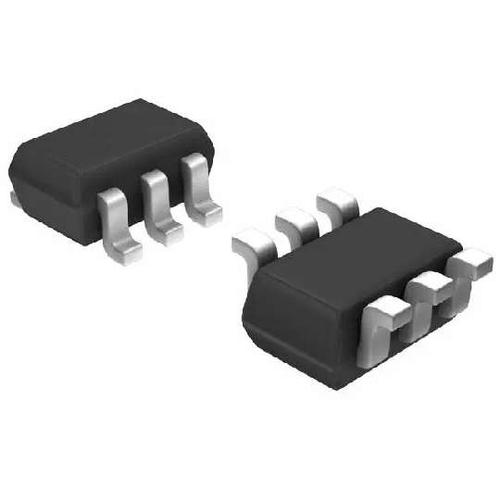

Case/Package | SC-70-6 |
Current Rating | 50.0 mA |
Power Rating | 0.15 W |
Number of Channels | 2 Channel |
Polarity | NPN, PNP |
Power Dissipation | 150 mW |
Breakdown Voltage (Collector to Emitter) | 50 V |
Continuous Collector Current | 100mA |
hFE Min | 30 @5mA, 5V |
Input Power (Max) | 150 mW |
DC Current Gain (hFE) | 30 |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Gain Bandwidth | 250 MHz |
Power Dissipation (Max) | 150 mW |
Show | |
Size-Length | 2 mm |
Size-Width | 1.25 mm |
Size-Height | 0.9 mm |
Operating Temperature | -55℃ ~ 150℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | EAR99 |
