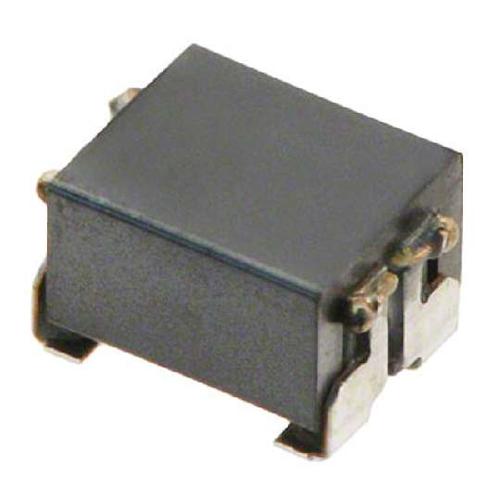

Image is for your reference only,please check specifications for details

B82789C113N2 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC86458230
Category:
Inductor Choke
Package:
1812
Datasheet:
Datasheet 3D Model
Description:
Ind Common Mode Choke 11uH -30% to 50% 100kHz Ferrite 300mA 1812 Blister T/R
Stock Locations:
Availability:
102 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.52

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82789C113N2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	1812
Voltage Rating (DC)	80 V
Voltage Rating (AC)	42 V
Current Rating	300 mA
Inductance	11 µH
Resistance	200 mΩ
Test Frequency	100 kHz
Current Rating (Max)	300 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	42 VAC
Resistance (DC Max)	250 mΩ
	Show
Size-Height	3 mm
Weight	25.0 g
Operating Temperature	-55℃ ~ 125℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
