TPS61085DGKT TI - DC to DC Converter

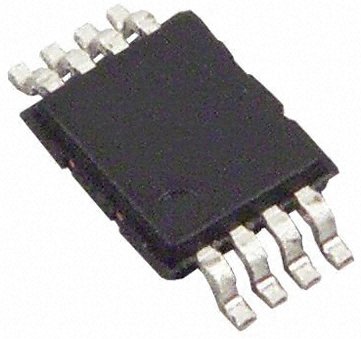

Image is for your reference only,please check specifications for details

TPS61085DGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC43571122
Category:
DC to DC Converter
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
Повышающий регулятор 18.5В, 2А, 650кГц / 1.2МГц, повышающий DC-DC преобразователь с принудительным ШИМ-режимом. Преобразователь DC-DC 2.3В до 6В, повышающий, один выход 2.8В до 18.5В, 2А, 8 выводов, VSSOP, лента и катушка
Stock Locations:
Availability:
113 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.95

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61085DGKT is a 650kHz/1.2MHz Step-up DC-DC Converter with forced PWM mode and an integrated 2.0A, 0.13R power switch capable of providing an output voltage up to 18.5V. The selectable frequency of 650kHz or 1.2MHz allows the use of small external inductors and capacitors and provides fast transient response. The external compensation allows optimizing the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at start-up. This high frequency high efficiency boost converter"s novel topology using adaptive off-time provides superior load and line transient responses and operates also over a wider range of applications than conventional converters. The converter operates in continuous conduction mode (CCM) as soon as the input current increases above half the ripple current in the inductor, for lower load currents it switches into discontinuous conduction mode (DCM).
18.5V Boost converter with 2.0A switch current
650kHz/1.2MHz Selectable switching frequency
Adjustable soft-start
Thermal shutdown
Under-voltage lockout
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Frequency	1.2 MHz
Number of Outputs	1 Output
Output Voltage	2.8V ~ 18.5V
Output Current	2 A
Number of Positions	8 Position
Quiescent Current	70.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.2 MHz
Topology	Boost
Input Voltage (Max)	6 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	18.5 V
Output Voltage (Min)	2.8 V
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3 V
Input Voltage	2.3V ~ 6V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
