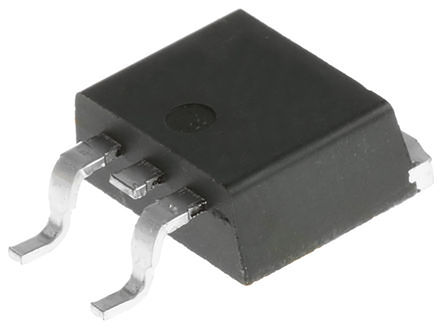

Image is for your reference only,please check specifications for details
- NCV317BD2TG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC22715306
-
Category:Voltage Regulator
-
Package:TO-263-3
-
Datasheet:Datasheet 3D Model
-
Description:LDO Regulator Pos 1.2V to 37V 1.5A Automotive 3Pin(2+Tab) D2PAK Rail
-
Stock Locations:
-
Availability:2,266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.71
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 1.5A D2PAK
NCV317BD2TG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.2V ~ 37V |
| Output Current | 1.5 A |
| Number of Positions | 3 Position |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 2.8 V |
| Output Voltage (Max) | 37 V |
| Output Voltage (Min) | 1.2 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Input Voltage | ≤40 V |
| Show | |
| Size-Length | 10.24 mm |
| Size-Width | 10.617 mm |
| Size-Height | 4.572 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
