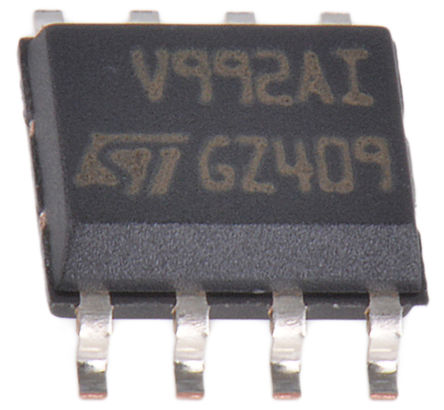

Image is for your reference only,please check specifications for details

TSV992AIDT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC6352759
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSV992AIDT Operational Amplifier, Dual, 2 Amplifier, 20MHz, 10V/µs, 2.5V to 5.5V, SOIC, 8Pins
Stock Locations:
Availability:
1,700 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.07

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSV992AIDT is a dual Operational Amplifier with rail-to-rail input and output. It offers low voltage operation. This device features an excellent speed/power consumption ratio, offering a 20MHz gain-bandwidth, stable for gains above 4 (100pF capacitive load), while consuming only 1.1mA maximum at 5V. These characteristics make the TSV99x family ideal for sensor interfaces and battery-supplied applications.
Ultralow input bias current
1.5mV Maximum low input offset voltage
820µA Typical low power consumption
35mA High output current
1pA Typical low input bias current
>=5kV ESD Internal protection
2µV/°C Input offset voltage drift

Show

TSV992AIDT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	35 mA
Supply Current	820 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	82 dB
Bandwidth	20 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	20 MHz
Input Offset Voltage	1.5 mV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	20 MHz
Minimum CMRR Range	62 dB
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
