Description

The 1N53 series from On Semiconductor are axial leaded zener voltage regulators in 017AA package.
Zener voltage Vz range from 3.3V to 200V
Maximum power dissipation of 5W
Operating temperature range -65°C to 200°C
Maximum surge current IFSM range from 0.9A to 20A

Show

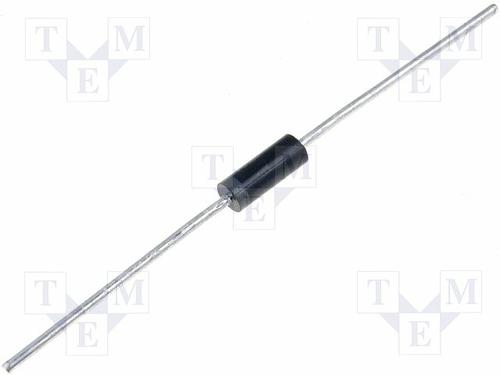

1N5340BG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35-2
Voltage Rating (DC)	6.00 V
Current Rating	200 A
Capacitance Tolerance	±5 %
Power Rating	5.00 W
Halogen Free Status	Halogen Free
Breakdown Voltage	3.00 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Forward Voltage	1.2V @1A
Power Dissipation	5 W
Test Current	200 mA
Forward Current	1 A
Zener Voltage	6 V
Maximum Forward Voltage (Max)	1.2V @1A
Input Power (Max)	5 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	200 ℃
Power Dissipation (Max)	5000 mW
	Show
Size-Length	8.89 mm
Size-Width	3.68 mm
Size-Height	3.68 mm
Material	Plastic
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
