Description

The 1N5333B series Surmetic™ Voltage Regulator Zener Diode with tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial lead, transfer-moulded plastic package that offers protection in all common environmental conditions. All external surfaces are corrosion-resistant and leads are readily solderable.
3.3 to 200V Zener voltage range
ESD rating of Class 3 (>16kV) per human body model
Surge rating of up to 180W at 8.3ms
Maximum limits guaranteed on up to six electrical parameters

Show

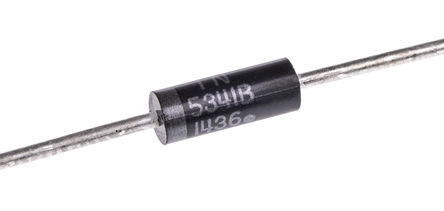

1N5341BG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35-2
Supply Voltage (DC)	4.75V (min)
Voltage Rating (DC)	6.20 V
Current Rating	200 A
Capacitance Tolerance	±5 %
Power Rating	5.00 W
Halogen Free Status	Halogen Free
Breakdown Voltage	6.2 V
Number of Positions	2 Position
Forward Voltage	1.2 V
Power Dissipation	5 W
Test Current	200 mA
Forward Current	1 A
Zener Voltage	6.2 V
Maximum Forward Voltage (Max)	1.2V @1A
Input Power (Max)	5 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	200 ℃
Power Dissipation (Max)	5000 mW
	Show
Size-Length	8.89 mm
Size-Width	3.68 mm
Size-Height	3.68 mm
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
