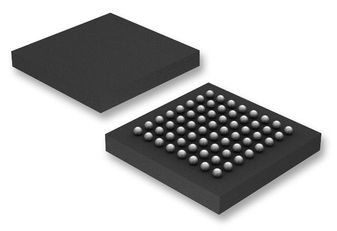

ADS1298CZXGT - TI
Manufacturer:
TI
ManyChip's Part#:
MC21936776
Category:
Analog to Digital, ADC IC
Package:
NFBGA-64
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADS1298CZXGT ANALOG TO DIGITAL CONVERTER ADC, 24Bit, 32KSPS, BGA-64, FULL REEL
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 40.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS1298CZXGT is a 24-bit Analog-to-digital Converter (ADC) with built-in programmable gain amplifiers (PGAs), internal reference and an on board oscillator. The family of multichannel, simultaneous sampling, delta-sigma (ΔΣ) ADC incorporates all of the features that are commonly required in medical electrocardiogram (ECG) and electroencephalogram (EEG) applications. With high levels of integration and exceptional performance, the ADC enables the development of scalable medical instrumentation systems at significantly reduced size and power. Additionally, any configuration of input channels can be selected for derivation of the right leg drive (RLD) output signal. The ADC operates at data rates as high as 32kSPS, thereby allowing the implementation of software pace detection. Lead-off detection can be implemented internal to the device, either with a pull-up or pull-down resistor or an excitation current sink or source.
Integrated respiration impedance measurement
Digital pace detection capability
Built-In oscillator and reference
SPI™ compatible serial interface
Green product and no Sb/Br

Show

ADS1298CZXGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	NFBGA-64
Supply Voltage (DC)	1.65V (min)
Power Rating	14.1 mW
Supply Current	3.1 mA
Number of Channels	8 Channel
Number of Positions	64 Position
Number of Bits	24 Bit
Sample Rate	32 KSPS
Power Consumption	6 mW
Number of ADCs	8 ADC
Number of Inputs	8 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	8.8 mW
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	1.65 V
Input Voltage	3 V
	Show
Size-Length	8.1 mm
Size-Width	8.1 mm
Size-Height	1.01 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
