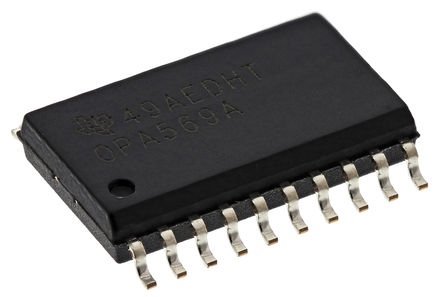

OPA569AIDWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC6634608
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 1.2MHz, 1.2V/µs, 2.7V to 5.5V, SOIC, 20Pins
Stock Locations:
Availability:
108 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA569AIDWP is a single high-current Operational Amplifier designed for driving a wide variety of loads while operating on low-voltage supplies. It operates from either single supplies for design flexibility and has rail-to-rail swing on the input and output. Typical output swing is within 150mV of the supply rails, with output current of 2A. Output swing closer to the rails is achievable with lighter loads. The OPA569 is unity gain stable, has low DC errors, is easy to use and free from the phase inversion problems found in some power amplifiers. High performance is maintained at voltage swings near the output rails. The OPA569 provides an accurate user-selected current limit that is set with an external resistor or digitally adjusted via a digital-to-analog converter. The OPA569 output can be independently disabled using the enable pin, saving power and protecting the load. The IMONITOR pin provides a 1:475 bidirectional copy of the output current.
Thermal protection
Adjustable current limit
Two flags - Current limit and temperature warning
Shutdown function with output disable
1.3µV/°C Typical offset drift
90dB Typical CMRR
Green product and no Sb/Br

Show

OPA569AIDWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Output Current	2 A
Supply Current	9 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	20 Position
Common Mode Rejection Ratio	60 dB
Input Offset Drift	1.30 µV/K
Bandwidth	1.2 MHz
Slew Rate	1.20 V/μs
Gain Bandwidth Product	1.2 MHz
Input Offset Voltage	500 µV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	1.2 MHz
Minimum CMRR Range	60 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5V ~ 6V
	Show
Size-Length	12.82 mm
Size-Width	7.52 mm
Size-Height	2.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
