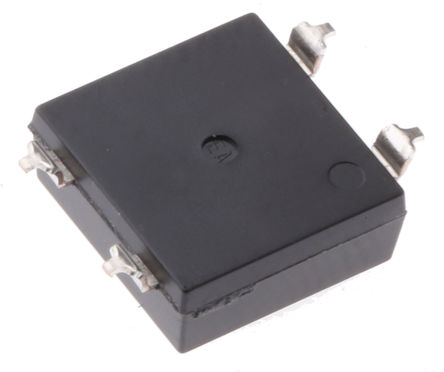

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Super miniature design,**
- **SOP (1Form A/1Form B)**
- **8-pin type. Controls load voltage 60V, 350V.**
- * 60V type couples high capacity (0.45A) with low on-resistance .
- * 2 channels in super miniature design
- * Applicable for 1 Form A 1 Form B use as well as two independent
- 1 Form A and 1 Form B use
- * Controls low-level analog signals
- * Low-level off-state leakage current
AQY272A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | DIP-4 |
| Current Rating | 2 A |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 60V |
| Output Current | 2000 mA |
| Contacts Type | SPST-NO |
| Load Current | 2 A |
| Number of Positions | 4 Position |
| Input Current | 50 mA |
| Rise Time | 2.46 ms |
| Isolation Voltage | 2.5 kV |
| Forward Current | 1 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 2 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 60 VAC |
| Input Voltage | 1.16 VDC |
| Show | |
| Size-Length | 9.3 mm |
| Size-Width | 8.8 mm |
| Size-Height | 3.7 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
