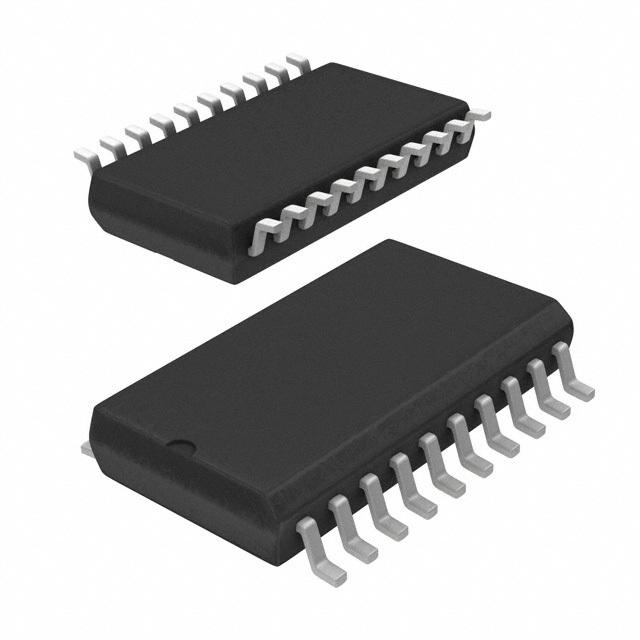

BTS716G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC6802873
Category:
MOSFET, MOSFET Transistor
Package:
PG-DSO-20
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 4 Driver, 5.3A, MOS, PDSO20, GREEN, PLASTIC, SOP-20
Stock Locations:
Availability:
305 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.32

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS716G is a 4-channel high-side vertical MOSFET Power Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback and monolithically integrated in smart SIPMOS® technology. It provides embedded protective functions and logic ground independent from load ground.
Very low standby current
Improved electromagnetic compatibility
Fast demagnetization of inductive loads
Stable behaviour at under-voltage
Wide operating voltage range
High voltage capability
Benchmark energy robustness
ESD sensitive device, take proper precaution while handling the device.

Show

BTS716G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PG-DSO-20
Supply Voltage (DC)	5.00V (min)
Number of Outputs	4 Output
Output Current	5.3 A
Supply Current	0.5 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Power Dissipation	3.6 W
Output Current (Max)	2.3 A
Output Current (Min)	2.3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3600 mW
Supply Voltage	5.5V ~ 40V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	10 V
	Show
Size-Length	12.8 mm
Size-Width	7.60 mm
Size-Thickness	2.65 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
